Completions products

Packers and liner hangers, sourced and workshop-ready.

Just-in-time supply when the well needs hardware that is not sitting in-country. Assemblies are prepared against the job ticket before they ship.

How we supply

Manufacturer relationships, then job-specific prep.

Paxcell builds, sources, and delivers specialty oil well equipment. Assemblies are torque-made and pressure-tested before they leave the preparation bay — 15-ton overhead lift, a 15,000 psi test module with multi-camera recording and automatic bleed-off (four assemblies at once), and 2-3/8" to 10" torque makeup.

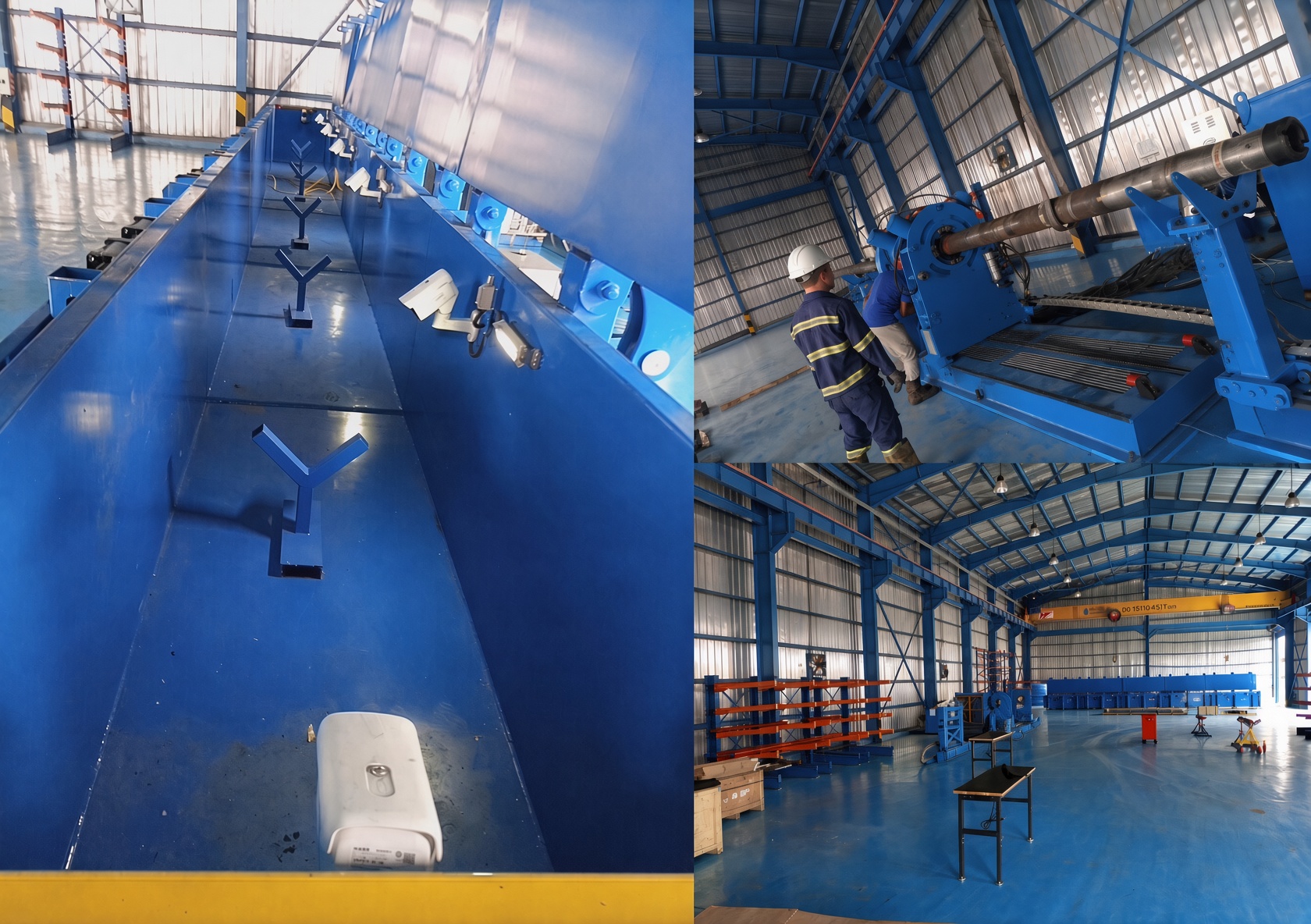

Completions workshop: test trough, torque makeup, and overhead crane bay — Test trough, torque makeup, and crane bay used to prepare sourced assemblies.

Production packers

Dual-string production packer

Hydraulic-set, double-grip retrievable packer for dual completions.

Hydraulic-set retrievable packer

Compact, economical packer for low-to-medium pressure. Short body for tight doglegs and horizontal wells.

Permanent seal-bore packer

High-differential permanent packer for hostile wells. One-piece slips to reduce the chance of premature setting.

Hydraulic-set retrievable packer — example sizes

Casing OD	Weight range	Max / min tool OD	Thread
5.000"	11.5–20.8#	4.125" / 1.938"	2-3/8 EUE
5.983"	14.8–26.0#	4.500"–5.000" / 1.938"–2.000"	2-3/8 EUE
6.625"	17.0–32.0#	5.000"–5.875" / 2.441"	2-7/8 EUE
7.000"	17.0–38.0#	5.875"–6.000" / 2.441"–2.992"	2-7/8–3-1/2 EUE
9.625"	29.3–53.5#	8.125" / 2.992"	3-1/2 EUE

Liner hanger system

Running assembly and liner-hanger assembly supplied as a system. Inventory is held so a two-well package can be recognized and shipped on short notice.

Running tools

Hydraulic release
Mechanical release with drill-down
Lift nipple with junk cover
Packer-setting dog sub
Hydraulic-release running tool
Retrievable cement bushing
Slick joint with releasing sub

Accessories

Seal assemblies
Wiper plugs
Float equipment
Casing accessories

Send a completions tally
